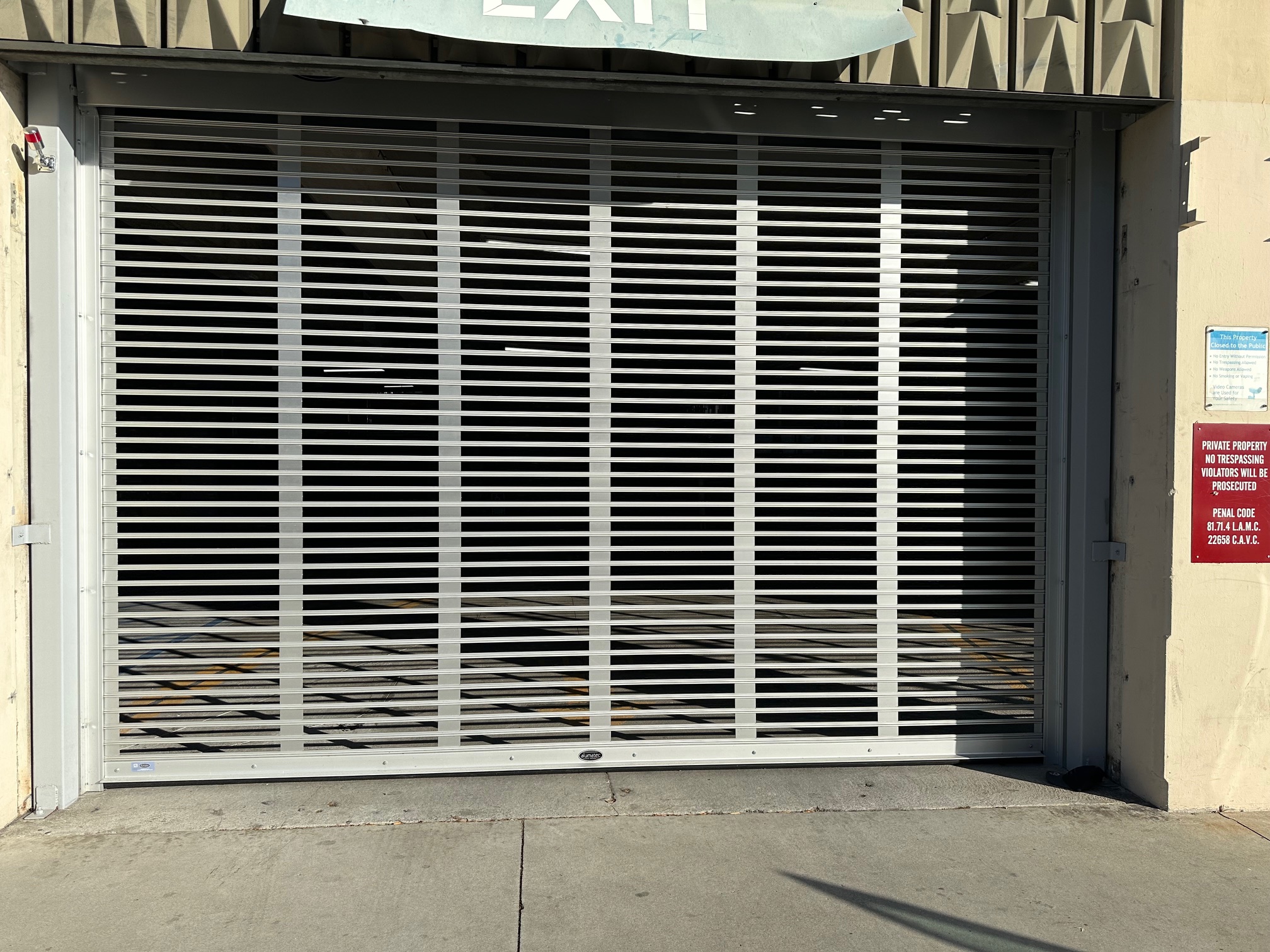

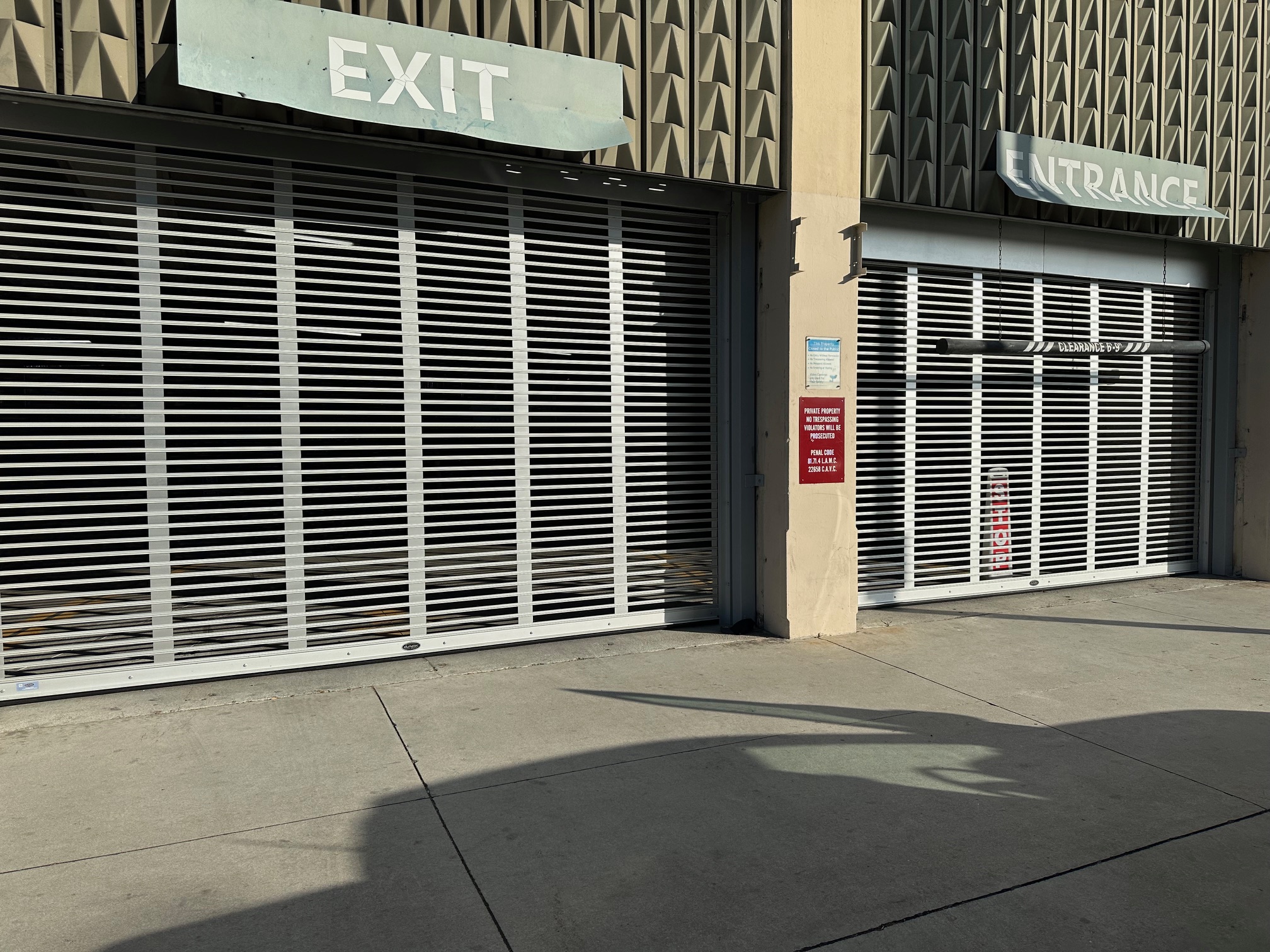

The Alumatec REVOL is a revolutionary open-pattern roll-up shutter specifically engineered for extreme high-cycle parking garage applications. Designed to last longer than traditional grilles with a guaranteed lifespan of 250,000 cycles, the REVOL II utilizes significantly fewer moving components (90% less than competitors), resulting in less maintenance and unparalleled durability for continuous operation.

APPLICATIONS: Extreme high-cycle parking garage applications.

STANDARD FEATURES INCLUDE:

• Cycle Life: 250,000 cycles guaranteed (reference warranty and purchase agreement)
• Design: 99% less moving parts compared to traditional grilles, No traditional travel failure points
• Motor: Direct shaft mounted high speed motor operation (Eliminates traditional safety brake)
• Speed: On average 18” per second on the open and 12” per second on the close
• Construction: UHMW Panel & hardware protector (prevent side-shifting), High cycle 3" deep guides with high yield Felt and ABS wear strips for increased cycle-life and wear capabilities
• Enclosure: Hood cover with adjustable center supports
• Safety: Safety Edge, (NEMA-4) photo-eyes, light curtains.

STANDARD FINISHES:

• Clear Anodized (Note: Applies primarily to aluminum slat/frame components)

FINISH OPTIONS:

• Dk. Bronze Anodized
• Black Anodized
• Custom Powder-Coating (RAL Color-Chart)

MAX STANDARDS:

Max Width: 28 ft.

Max Height 14 ft.

Max total square foot: 350

Standard upset from Stop height to bottom of coil: 4”
