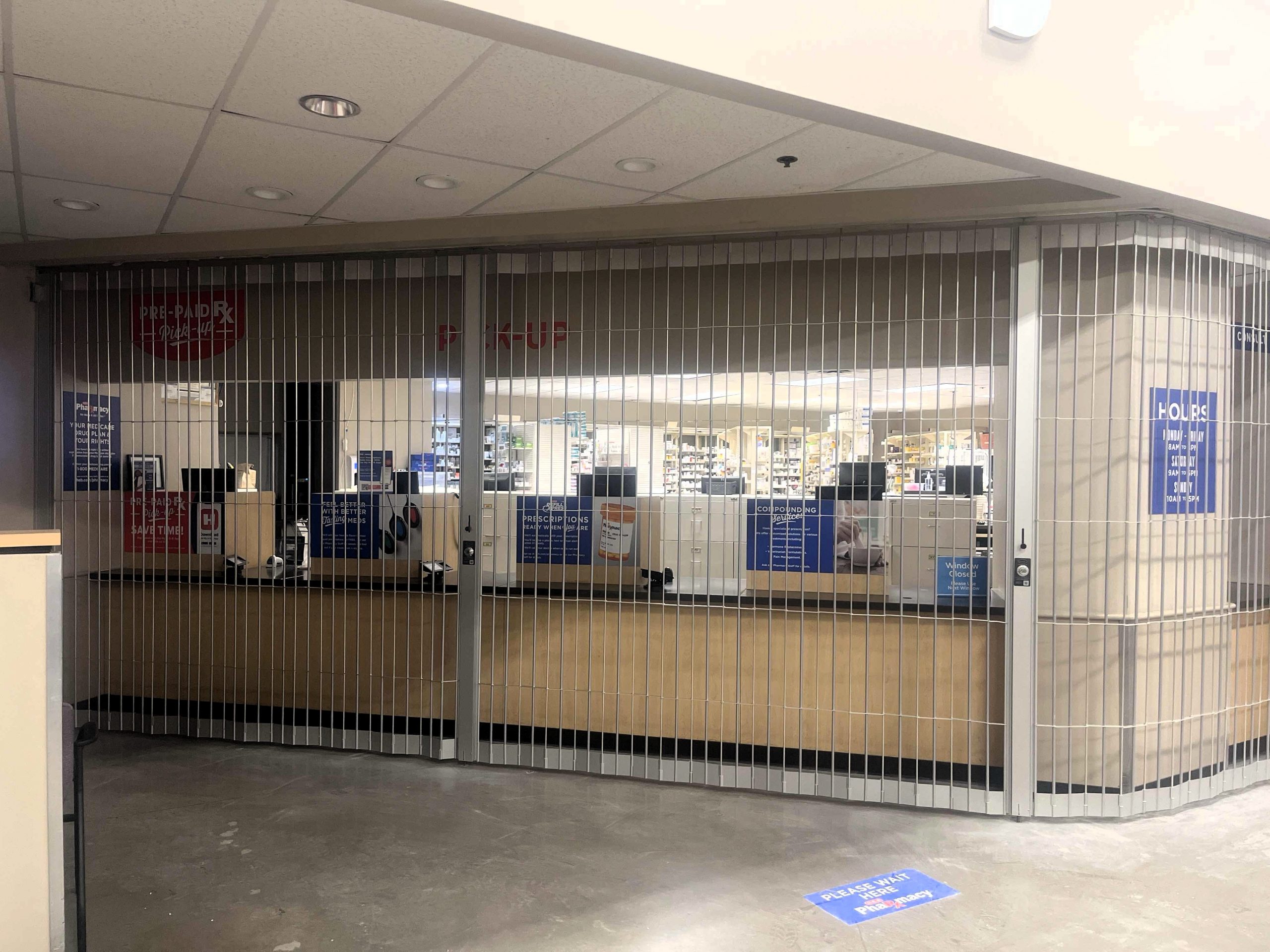

Introducing the Alumatec ES-18 Side-Folding Accordion Door

The Alumatec ES-18 Open-Pattern Side-Folding Accordion Door is a premier yet economical security solution designed for expansive storefronts and openings where vertical space is a primary concern. Operating horizontally, this model requires no headroom or floor tracks, allowing it to glide smoothly and stack neatly to the side. Engineered with a robust 5/16" rod and 1/8" thick single link construction, the ES-18 is built to provide high-strength security without compromising on visibility or airflow.

This lightweight yet durable door is ideal for securing a wide variety of opening types—including complex curvilinear designs—and is capable of spanning widths up to 125 feet. With its refined Open Pattern Rod & Link design, the ES-18 ensures that merchandise and interiors remain highly visible even when the area is fully secured.

APPLICATIONS: Storefronts, locations with limited vertical headroom, curvilinear openings, and security environments where a clean, track-free floor is desired.

STANDARD FEATURES INCLUDE:

Design:

Advanced Single-Hinge Engineering: Features an upgraded, single-shape hinge design that eliminates the complexity of traditional three-part assemblies.

High-Cycle Performance: The simplified hinge reduces friction points and mechanical wear, significantly extending the operational life of the door.

Precision Glide: Equipped with our exclusive best in class top track and V3 roller wheel bearings for effortless, silent operation across large spans.

• Construction: High-durability build featuring 5/16" sleeved rods and 1/8" thick aluminum links.
• Efficiency: Features a compact 7" panel width that fits seamlessly into a 8" minimum pocket width, maximizing usable space.
• Scale: Capable of securing massive openings up to 150' wide and 15' high.
• Spacing: Large 18" aperture spacing for a modern, open aesthetic.
• Robust Hardware: designed and fabricated with 5/16" sleeved rods and 1/8" thick single links for maximum structural integrity and life span.
• Visibility: Open pattern allows for maximum visibility and ventilation.
• Ease of use: Lightweight design (0.95 lbs./ft. extended) ensures effortless manual operation and simple installation.
• Radius options: Available in 30°, 45°, and 90° standard radii (all with a 14" radius dimension) or custom continuous curves to fit any architectural layout.
• Link pattern options:
• Straight lattice pattern (SL)
• Brick pattern (BP)

STANDARD FINISHES:

• Mill

FINISH OPTIONS:

• Clear anodized (class II)
• Dark Bronze (class II)

VALUE ADDED OPTIONS:

• Multiple Locking Configurations: Including hook lock mullions, bi-parting lock mullions, and intermediate drop locks.
• Dust Proof Protection: Spring-loaded, dust-proof floor strikes.
• Integrated Solutions: Available with a pre-hung pocket door and frame by Alumatec Pacific for a seamless installation and architectural finish
